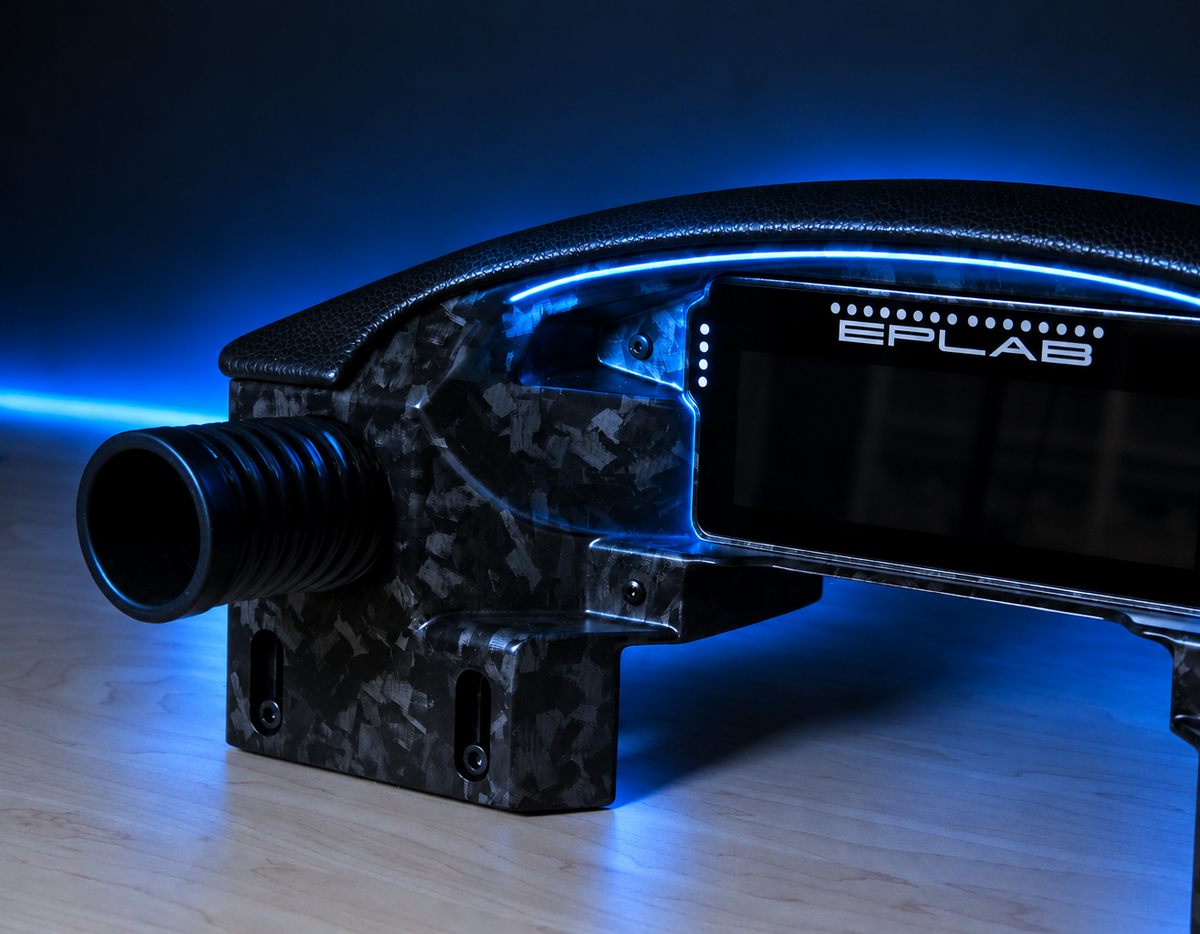

Close-up of the EPLAB FC992.2 dashboard and ventilation duct with blue background lighting
EPLAB FC992.2 and BB2.2 CUP bundle graphic showing a 20 percent button box discount
EPLAB FC992.2 and Carbon Hub bundle graphic showing a 20 percent hub discount
EPLAB FC992.2 bundle graphic with BB2.2 CUP and Carbon Hub showing 25 percent accessory discounts
EPLAB FC992.2 bundle graphic with BB2.2 CUP, Carbon Hub and Start Button showing 25 percent accessory discounts
EPLAB FC992.2 bundle graphic with BB2.2 CUP, Carbon Hub and Start Button showing 30 percent accessory discounts
Front view of the EPLAB FC992.2 dashboard with central display and forged carbon-look housing
EPLAB FC992.2 dashboard mounted above a steering wheelbase on an aluminium profile rig
Close-up of the EPLAB FC992.2 dashboard and ventilation duct with blue background lighting
EPLAB FC992.2 and BB2.2 CUP bundle graphic showing a 20 percent button box discount
EPLAB FC992.2 and Carbon Hub bundle graphic showing a 20 percent hub discount
EPLAB FC992.2 bundle graphic with BB2.2 CUP and Carbon Hub showing 25 percent accessory discounts
EPLAB FC992.2 bundle graphic with BB2.2 CUP, Carbon Hub and Start Button showing 25 percent accessory discounts
EPLAB FC992.2 bundle graphic with BB2.2 CUP, Carbon Hub and Start Button showing 30 percent accessory discounts
Front view of the EPLAB FC992.2 dashboard with central display and forged carbon-look housing
EPLAB FC992.2 dashboard mounted above a steering wheelbase on an aluminium profile rig
Close-up of the EPLAB FC992.2 dashboard and ventilation duct with blue background lighting
EPLAB FC992.2 and BB2.2 CUP bundle graphic showing a 20 percent button box discount
EPLAB FC992.2 and Carbon Hub bundle graphic showing a 20 percent hub discount
EPLAB FC992.2 bundle graphic with BB2.2 CUP and Carbon Hub showing 25 percent accessory discounts
EPLAB FC992.2 bundle graphic with BB2.2 CUP, Carbon Hub and Start Button showing 25 percent accessory discounts
EPLAB FC992.2 bundle graphic with BB2.2 CUP, Carbon Hub and Start Button showing 30 percent accessory discounts

SKU# FC9922CK

FC992.2

€1.879,00
€1.879,00
Tax included. Shipping calculated at checkout.
Options::
FC992.2 (No Button Box)
Icona dei tempi di consegna Ships within 10-15 working days.

Designed and crafted with exceptional attention to detail, FC992.2 recreates the look and functionality of a complete GT3 car dashboard, delivering an outstanding level of immersion and realism.

The structure is designed to mount directly above the simulator wheelbase, connecting the dashboard to the rig's front horizontal aluminium profiles, as shown in the images. For greater rigidity and stability, the rear can also be secured to the horizontal profiles using four M8 screws when the rig uses 120 mm profiles. Otherwise, the front mounting alone is sufficient to ensure a stable installation.

At the centre of the dashboard is an integrated 7.8-inch display with tempered glass, designed to provide a clear view and a highly realistic appearance, just like genuine racing instrumentation.

Lighting is provided by 24 interchangeable RGB LEDs, allowing you to customise the dashboard lighting to suit your cockpit and preferred configuration.

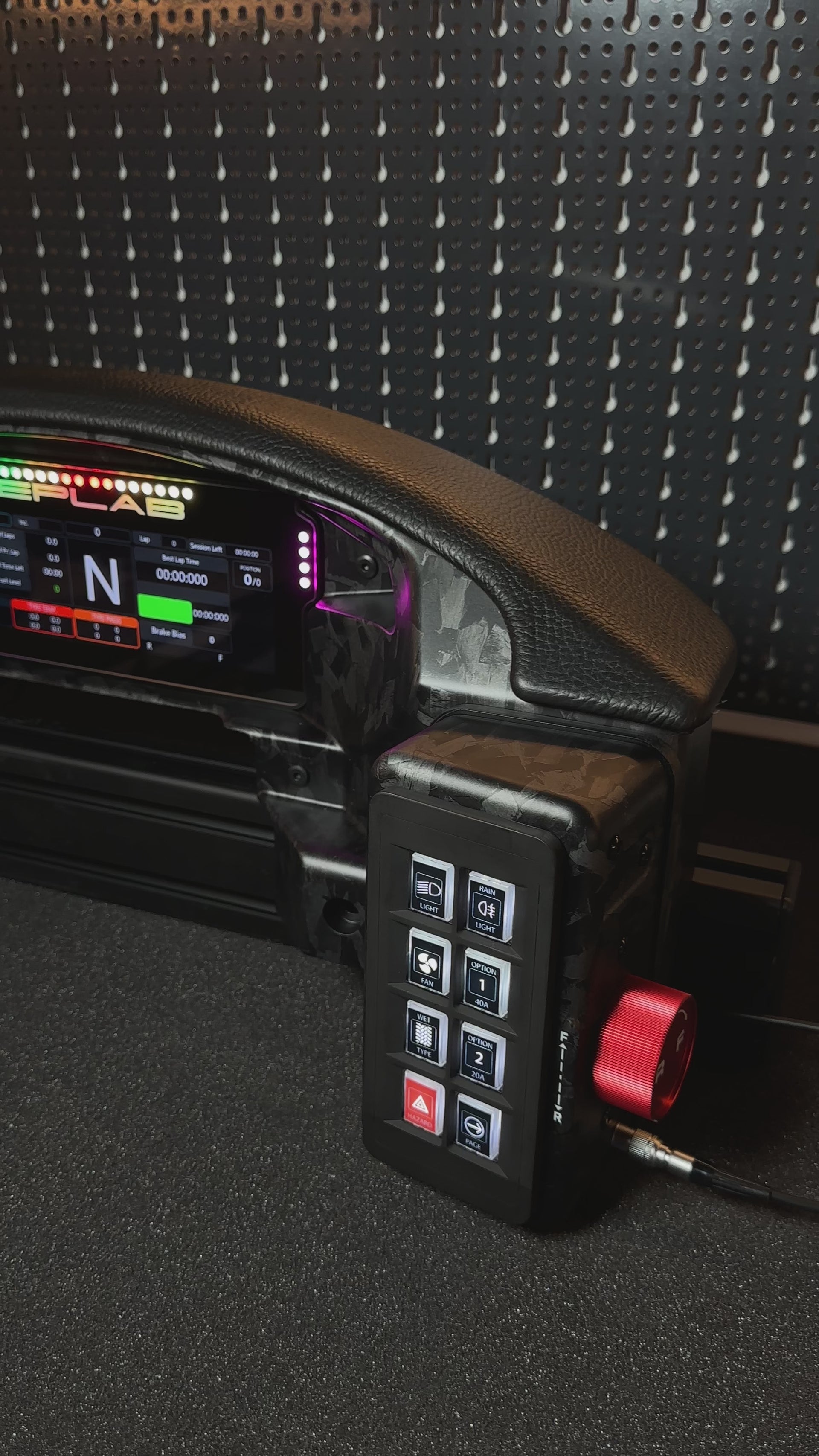

Two dedicated mounting points on the right-hand side allow the BB2.2 Button Box to be installed. Combining the GT3 Dashboard Cockpit with the BB2.2 is the recommended setup for a complete configuration, with the dashboard and main driving controls seamlessly integrated into a single solution.

Key Features:

  • Design: Complete replica of a GT3 car dashboard
  • Installation: Mounts above the simulator wheelbase using the front horizontal aluminium profiles
  • Rear mounting: Optional additional mounting with four M8 screws on 120 mm horizontal profiles
  • Alternative configuration: If the profiles are not 120 mm, the front mounting alone is sufficient
  • Display: Integrated 7.8-inch display
  • Display protection: Tempered glass
  • Lighting: 24 interchangeable RGB LEDs
  • Customisation: Configurable RGB lighting to suit your cockpit
  • Button box support: Side mounting points for the BB2.2
  • Construction: Structure designed specifically for sim racing applications
  • Use: GT3 simulators, racing cockpits and professional simulators
  • Immersion: Designed for a hyper-realistic driving experience

Pairing the dashboard with the BB2.2 Button Box is the recommended configuration for a complete dashboard with all the main controls seamlessly integrated.

Disclaimer:

This product is an independent sim racing accessory designed exclusively for simulation use. It is not affiliated with, endorsed by, sponsored by or associated with any vehicle manufacturer, brand or motorsport team.

The design of this product draws inspiration from motorsport engineering and GT3 car configurations solely for simulation purposes. All mechanical parts, electronic components, displays, lighting systems, connectors and assemblies are independently designed and produced.
Pre-Order
Product Details
FC992.2

FC992.2

€1.879,00
€1.879,00
Description
Designed with exceptional attention to detail, FC992.2 recreates the look and functionality of a real GT3 dashboard. The structure mounts directly above the simulator wheelbase, connecting to the front horizontal aluminium profiles. The rear mounting can be further reinforced using four M8 screws on 120 mm profiles. At its centre is an integrated 7.8-inch display with tempered glass, providing a realistic appearance and a clear view. Lighting is provided by 24 interchangeable RGB LEDs, with fully customisable lighting. Two dedicated mounting points on the right-hand side accommodate the BB2.2 Button Box. The FC992.2 + BB2.2 combination offers a complete, seamlessly integrated solution. Its design, functionality and racing details are developed to deliver a highly immersive GT3 experience.

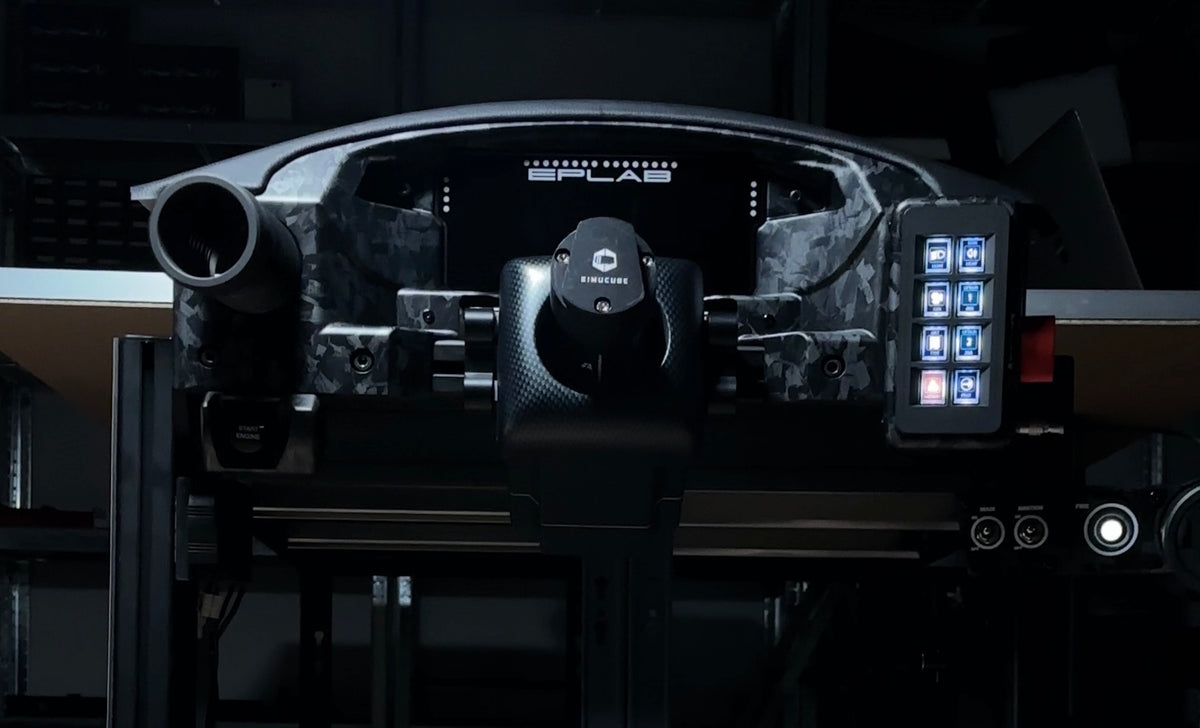

EPLAB FC992.2 dashboard and S-BB992 controls installed on a sim racing cockpit
Display & RGB LEDs
The dashboard integrates a 7.8-inch VoCore display, perfectly housed within the enclosure. The display is protected by tempered glass, designed to provide high durability and a premium finish. The upper section features 24 RGB LEDs, fully configurable through SimHub. Colours, effects and lighting functions can be customised to suit your needs and simulator setup.

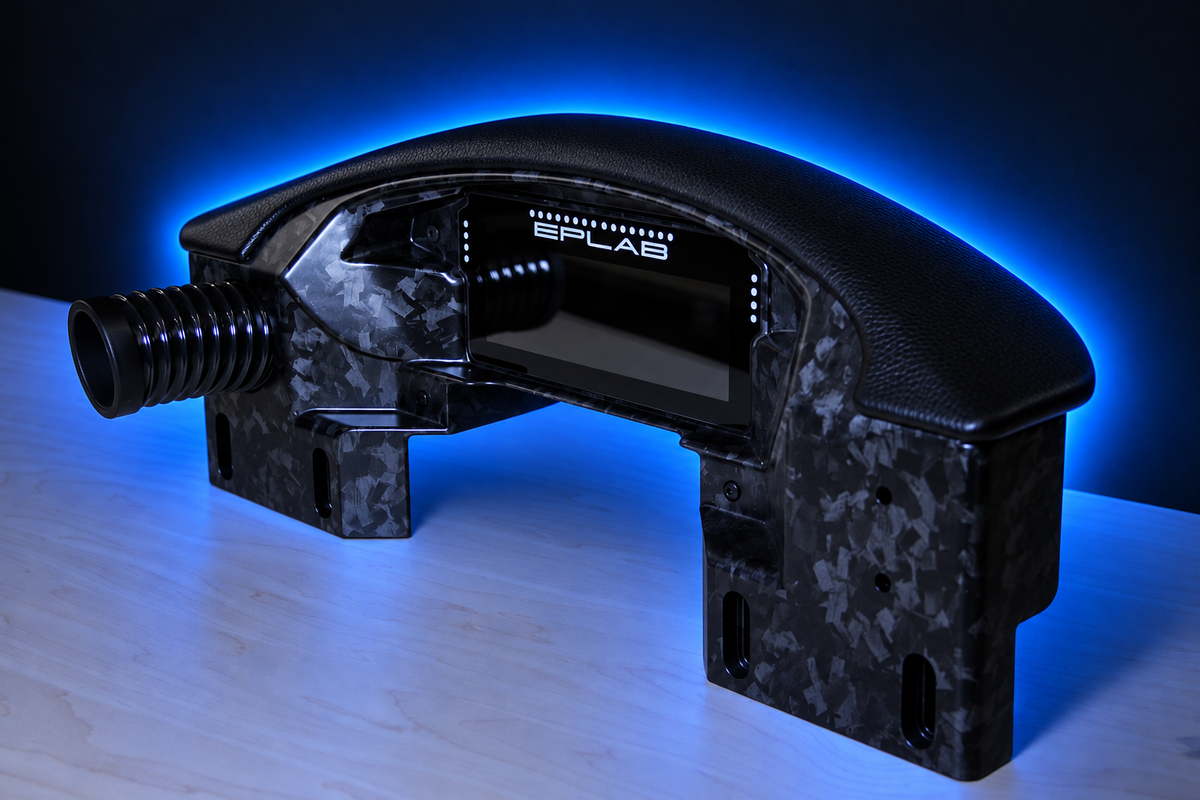

EPLAB FC992.2 dashboard photographed on a workbench with blue lighting
Entirely Handcrafted
Every EPLAB dashboard is entirely handcrafted through a multi-stage artisan process. The upper section is covered in leather, shaped by hand to follow the contours of the dashboard precisely. The structure is carefully prepared and sanded before finishing. The surface then undergoes hydro dipping to create the forged carbon effect. The process is completed with a UV matte clear coat to protect the surface. Every stage is carried out with particular attention to precision and detail. The result is a uniform, durable finish with an exclusive appearance.

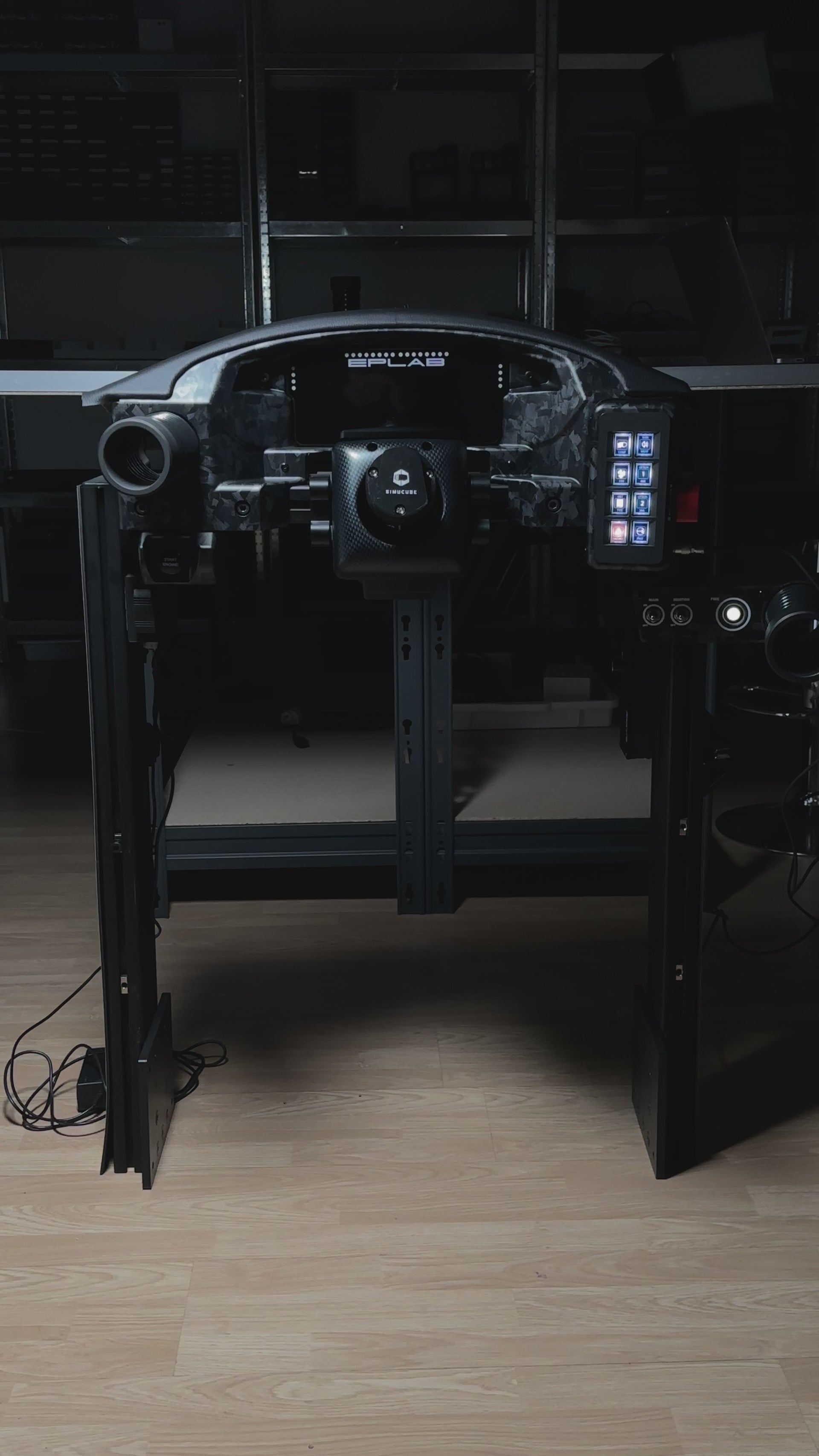

EPLAB FC992.2 dashboard and BB2.2 CUP button box installed on a sim racing cockpit

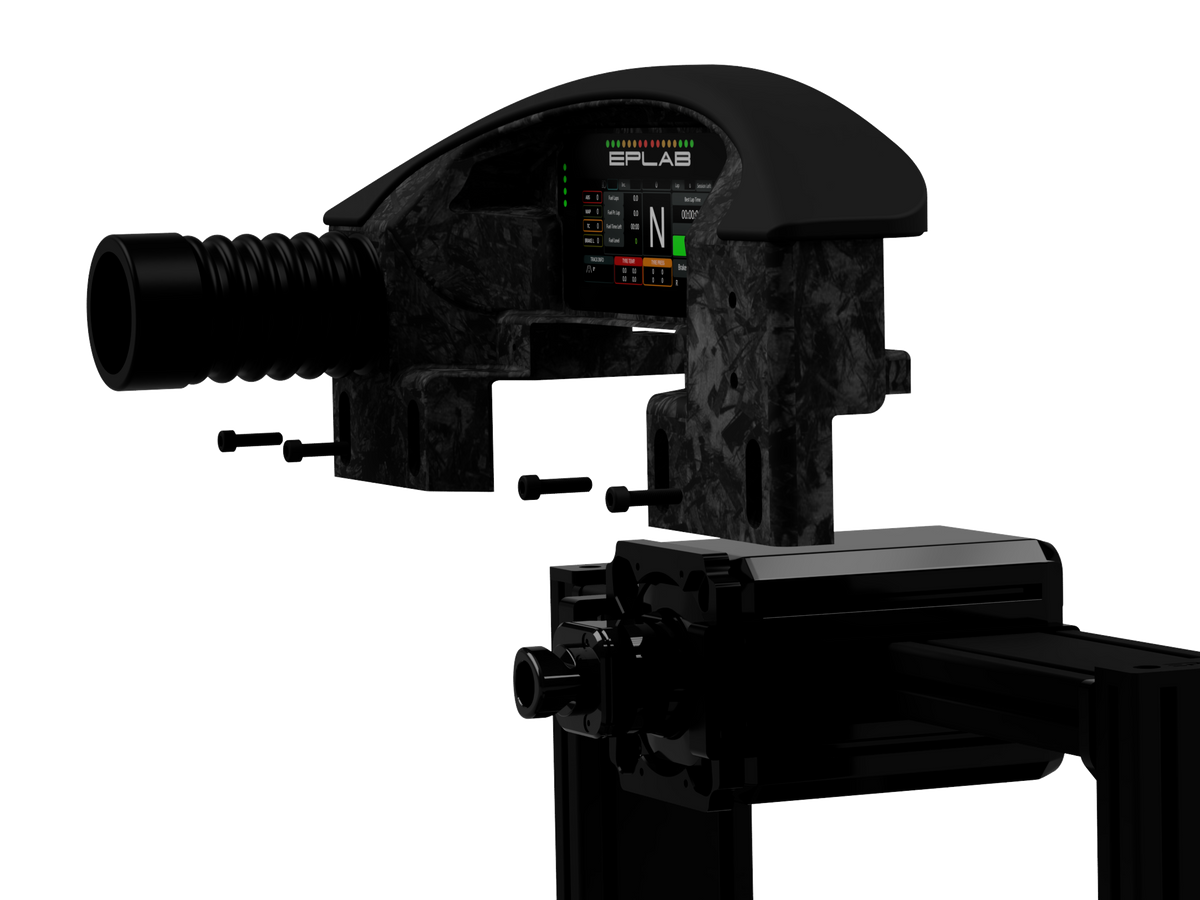

Mounting
The cockpit features four slotted holes at the front for direct attachment to the horizontal aluminium profile in the wheelbase mounting area. To install it, first insert four M8 T-slot nuts into the profile, then secure the cockpit from the front using the four supplied M8 screws. The structure also includes four rear mounting points for additional attachment to the rear profile, where the cockpit configuration allows. This solution provides an extremely solid and stable mounting, ensuring high structural rigidity even during intensive use.

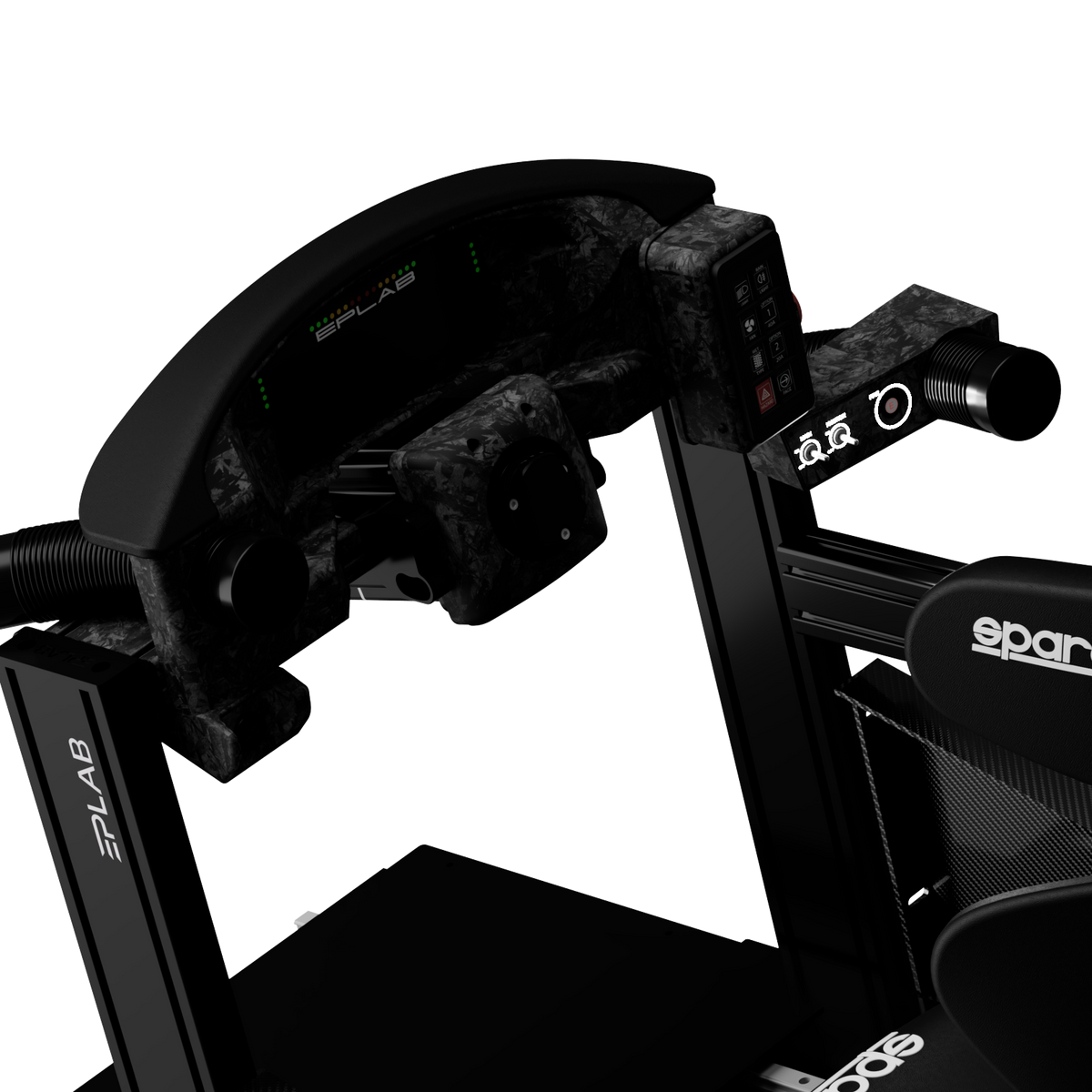

Rendered side view of the EPLAB FC992.2 dashboard mounted on an aluminium profile

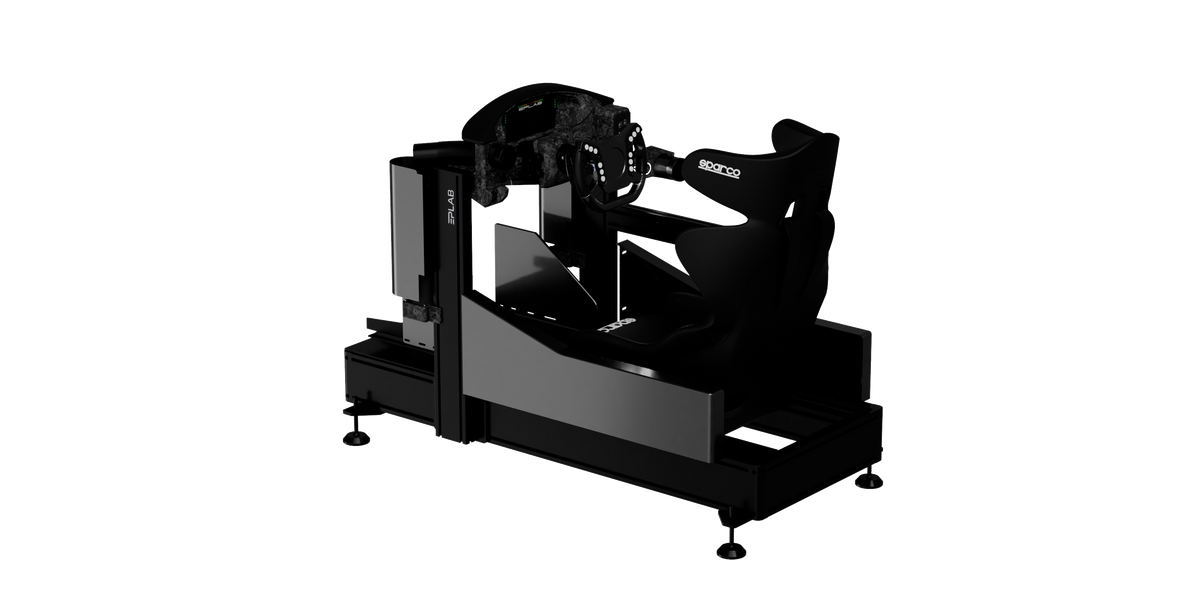

EPLAB FC992.2 dashboard and matching controls assembled on aluminium cockpit profiles
Front view of the EPLAB FC992.2 dashboard with central display and forged carbon-look housing

MEDIA

 Product Details

Technical Specifications
Dimensions / Weight / Materials
What's included in the package?

Key Features:

• Installation: Mounts above the simulator wheelbase using the front horizontal aluminium profiles
• Rear Mounting: Optional additional mounting with four M8 screws on 120 mm horizontal profiles
• Alternative Configuration: Front mounting alone is sufficient when the rig does not use 120 mm profiles
• Display: Integrated 7.8-inch display
• Display Protection: Tempered glass
• Lighting: 24 interchangeable RGB LEDs
• Customisation: Configurable RGB lighting to suit your cockpit
• Button Box Support: Side mounting points for the BB2.2
• Construction: Structure designed specifically for sim racing applications
• Intended Use: GT3 simulators, racing cockpits and professional simulators
• Design: Created for an immersive driving experience

Dimensions

600 × 245 × 150 mm

Voltage

 5 V

 Materials

PLA+ / Aluminium

 Weight

3 kg

 What's included in the package?

1.5 m USB Cable
1.5 m USB Extension Cable
1 Set of Screws
